Technical Production & Specification

Structural Applications Matrix

Kota stone flooring specifications for architectural, municipal, and industrial environments. Select the appropriate finish, calibrated thickness, slab size, and installation build-up for heavy loads, public circulation, and high-traffic commercial use.

Industrial Plants & Heavy Engineering

  • MEngineered for machinery bay vibrations and static compressive loads.
  • FHigh-friction surfaces optimized for heavy-duty forklift maneuvering.
  • VResistance to chemical runoff and industrial lubricants.
Primary ComplianceISO 9001:2015 | ASTM C170 | ASTM C97

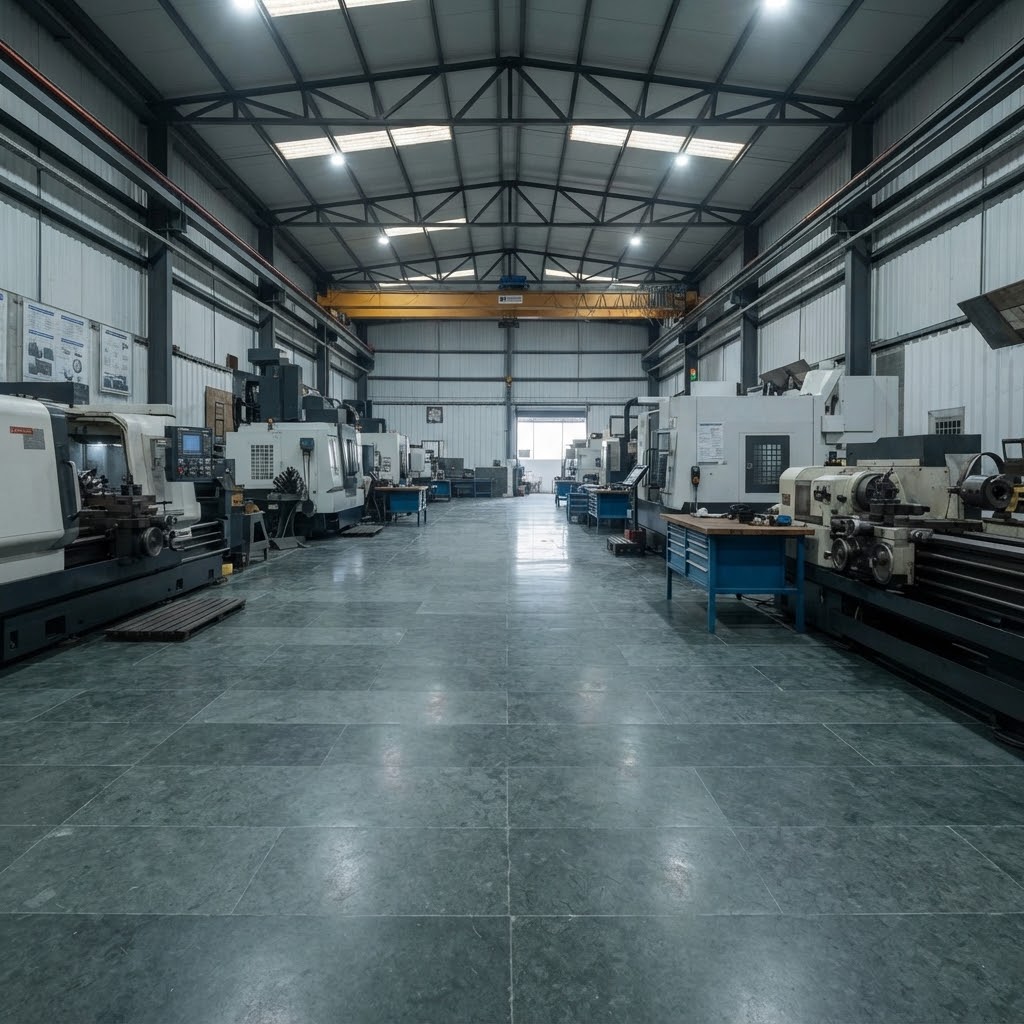

Industrial machinery bay with Kota blue limestone flooring
Machinery Bay Calibration

Live Load Calibration

Technical Estimator: Industrial

ASTM C170
650
200 MIN1200 MAX
Thickness25mm - 35mm
Porosity<0.05%
Load ClassMedium Industrial (Forklift 1.5t)
Recommended Sub-BasePCC Bed + Joint Reinforcement

Indicative specification. Final calibration is confirmed against project BOQ, substrate condition, and traffic profile.

Request Bulk Quote for This Spec

Custom Calibration & Sizing Capabilities

Direct quarry-to-order processing for bespoke architectural and infrastructure specifications.

Dimension & Cutting Range

  • Standard Stock Sizes:2' x 2', 2' x 1.5', 4' x 2', 5' x 2', 6' x 2' (Ready for immediate dispatch from Surat).
  • Bespoke Cut-to-Size:4' x 2.5', 5' x 2.5', 4' x 4', custom large-format slabs up to 3ft x 5ft+, staircase treads, risers, and coping stones cut to project BOQ.
  • Dimensional Accuracy:Precision gang-saw and wire-saw cutting with +/-0.5mm edge tolerance.

Thickness Calibration

  • Light / Standard (12mm - 18mm):Optimized for interior wall cladding, flooring tiles, and elevated slab dead-load reduction.
  • Heavy Commercial (18mm - 25mm):Ideal for public footpaths, corporate lobbies, and high-footfall corridors.
  • Heavy-Duty Industrial (25mm - 50mm+):Custom calibrated thick-bed slabs engineered for machinery bays, loading docks, and 5-ton forklift zones.

Surface Finish Options

  • Mirror Polished:Satin-to-gloss sheen for executive interiors and indoor public zones.
  • River Wash / Brushed:High-grip matte texture (R11-R13 rated) for wet zones, ramps, and outdoor infrastructure.
  • Honed / Natural Split:Subtle matte finish or raw hand-chiseled texture for rustic or heritage cladding.

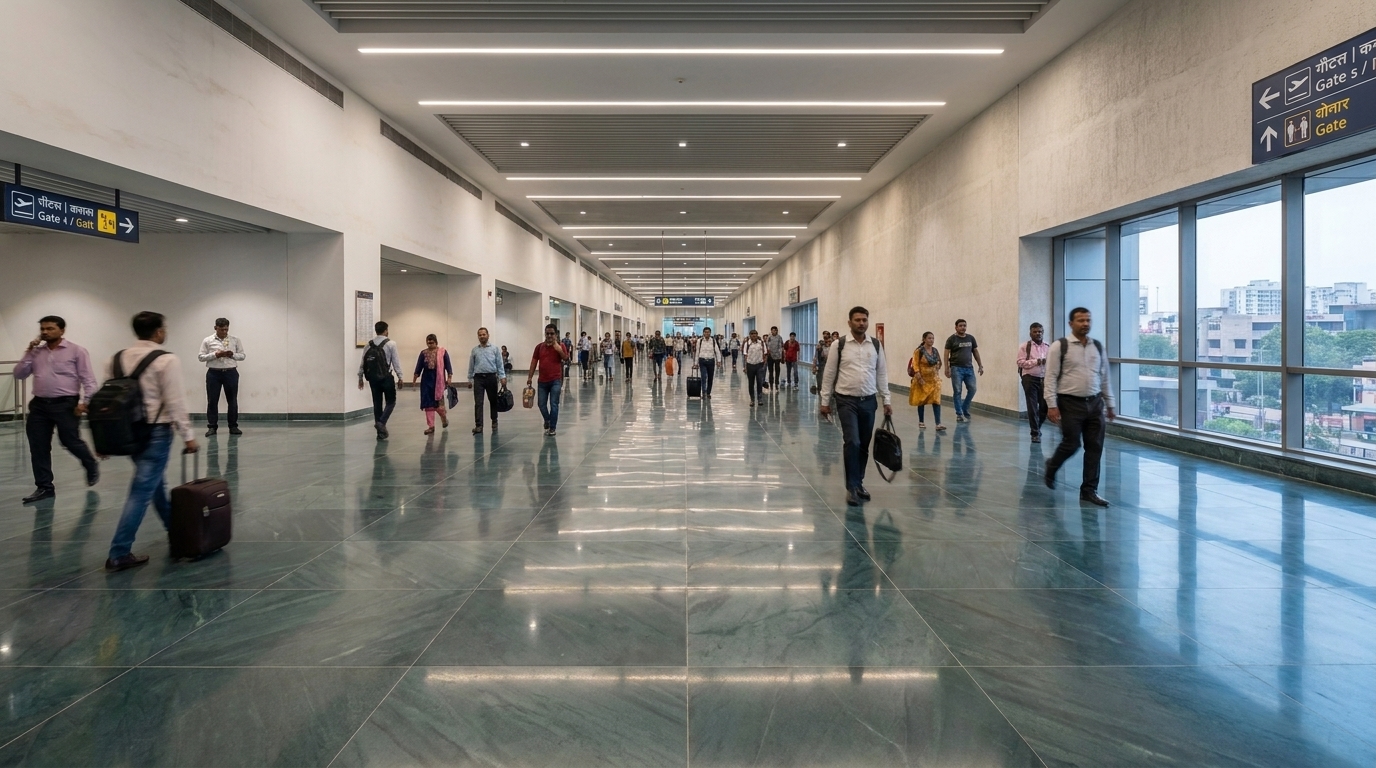

High-traffic public corridor with polished Kota stone flooring

Public Corridors

Engineered for millions of high-density footfalls with minimal maintenance required over a 50-year lifecycle. Ideal for metro stations, airport concourses, and municipal complexes requiring anti-abrasion durability.

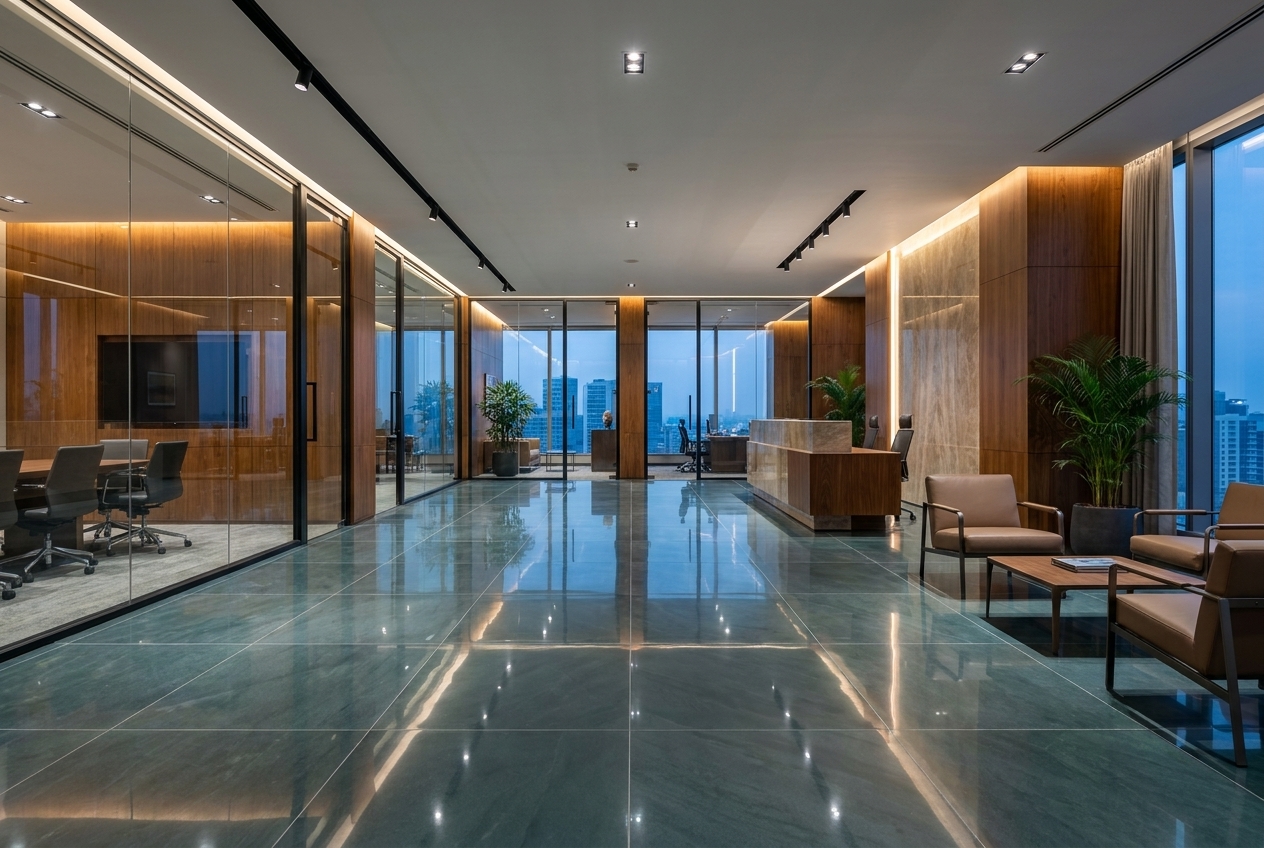

Luxury corporate interior with mirror-polished Kota stone flooring

Corporate Interiors

Refined dimensional tiles for executive lobbies, vertical staircases, and sanitary office zones. Features high-gloss diamond polishing that highlights natural mineral depth and subtle vein consistency.

Heavy industrial mill with calibrated Kota stone flooring

Industrial Infrastructure & Mills

Heavy-duty thick-bed slabs engineered to withstand high static load machinery, extreme vibrations, and heavy logistics traffic in textile mills, chemical plants, and heavy manufacturing bays.

Material Selection Guide

Match Kota Stone to the Operating Environment

Industrial floors, institutional corridors, and corporate interiors place different demands on natural limestone. Selection should account for wheel loads, point loads, footfall, moisture, required traction, maintenance access, and the engineered sub-base.

Compare the Kota Blue and Kota Brown technical properties, review the available surface finishes, and use the estimator above as an initial specification guide before final engineering approval.

In-House Processing & Regional Logistics

Processing Facility

In-house selection, cutting, finishing, calibration, and factory dispatch through Jyoti Stone in Ramganjmandi for bulk project BOQs.

Surat Distribution Hub

In-house freight coordination and on-site delivery through Madhav Kota Stone across Gujarat and Western India.

Bulk Inquiry
Technical Desk

Industrial Kota Stone FAQs

Initial guidance for specification teams preparing flooring and infrastructure BOQs.

What thickness of Kota stone is recommended for industrial flooring?

The required thickness depends on the operating load and sub-base. Light pedestrian areas generally use 18mm to 22mm, medium industrial areas use 25mm to 35mm, and heavy machinery or logistics zones commonly require 40mm or more.

Which finish is suitable for ramps and wet industrial areas?

River wash or brushed Kota stone provides a high-grip matte surface suited to ramps, loading areas, public walkways, and wet zones where traction is more important than gloss.

Can Kota stone withstand forklift and machinery loads?

Properly selected and installed calibrated slabs can support forklift traffic and static machinery loads. Final thickness, slab format, bedding, and reinforcement should be confirmed against the project's structural load conditions.

Can JM Stone Industries supply custom sizes for institutional projects?

Yes. We provide standard stock formats and bespoke cutting for flooring slabs, large-format pieces, staircase treads, risers, coping stones, and project-specific BOQs.
